Garage Door Repairs in Kingsley: Snapped Chain on an Old Guardian Opener
The drive chain on an old Guardian chain-drive opener in Kingsley snapped and dropped from the rail, leaving the sectional door stranded. With the unit decades old and parts unavailable, we replaced the opener rather than the chain and had the door running the same visit.
Service
Opener Replacement
Suburb
Kingsley
Door Type
Sectional
Job Type
Repair
Result
Old Guardian chain-drive replaced with a new opener — door back on automatic operation.
Job Summary
Problem
Opener drive chain snapped and hanging from the rail — door stranded.
Diagnosis
Decades-old Guardian chain-drive with no parts support; door hardware sound.
Solution
New opener installed on a new rail, remotes programmed, limits and safety reversal set.
Result
Old Guardian chain-drive replaced with a new opener — door back on automatic operation.
Customer Problem
The homeowner heard a clatter and found the drive chain of their Guardian chain-drive opener hanging slack from the rail — snapped, with the trolley free and the door going nowhere. Guardian units of this vintage were fitted across Kingsley and Woodvale in the 1980s and 90s, and while they were tough, this is how most of them finally retire.
- Drive chain snapped and hanging from the rail
- Trolley disconnected — door not driven
- Opener decades old, worn throughout
Inspection & Diagnosis
A new chain alone wasn't the answer: on an opener this old the sprocket, trolley and motor are just as worn, replacement chains for the model are effectively unavailable, and a chain repair carries no warranty. The door itself balanced correctly on the manual release, so a straight opener replacement was the sensible, one-visit fix.
- Chain, sprocket and trolley all worn; parts unavailable
- Door balance test passed — springs and hardware sound
- Opener replacement chosen over a chain repair
Solution
We removed the old Guardian unit and its rail, installed a new sectional door opener with a new rail and door arm, programmed the remotes and set the travel limits and force settings, then tested the safety reversal against an obstruction and demonstrated the manual release.
- Old Guardian opener and rail removed
- New sectional door opener and rail installed
- Remotes programmed, limits and force set
- Safety reversal tested, manual release demonstrated
Before & After

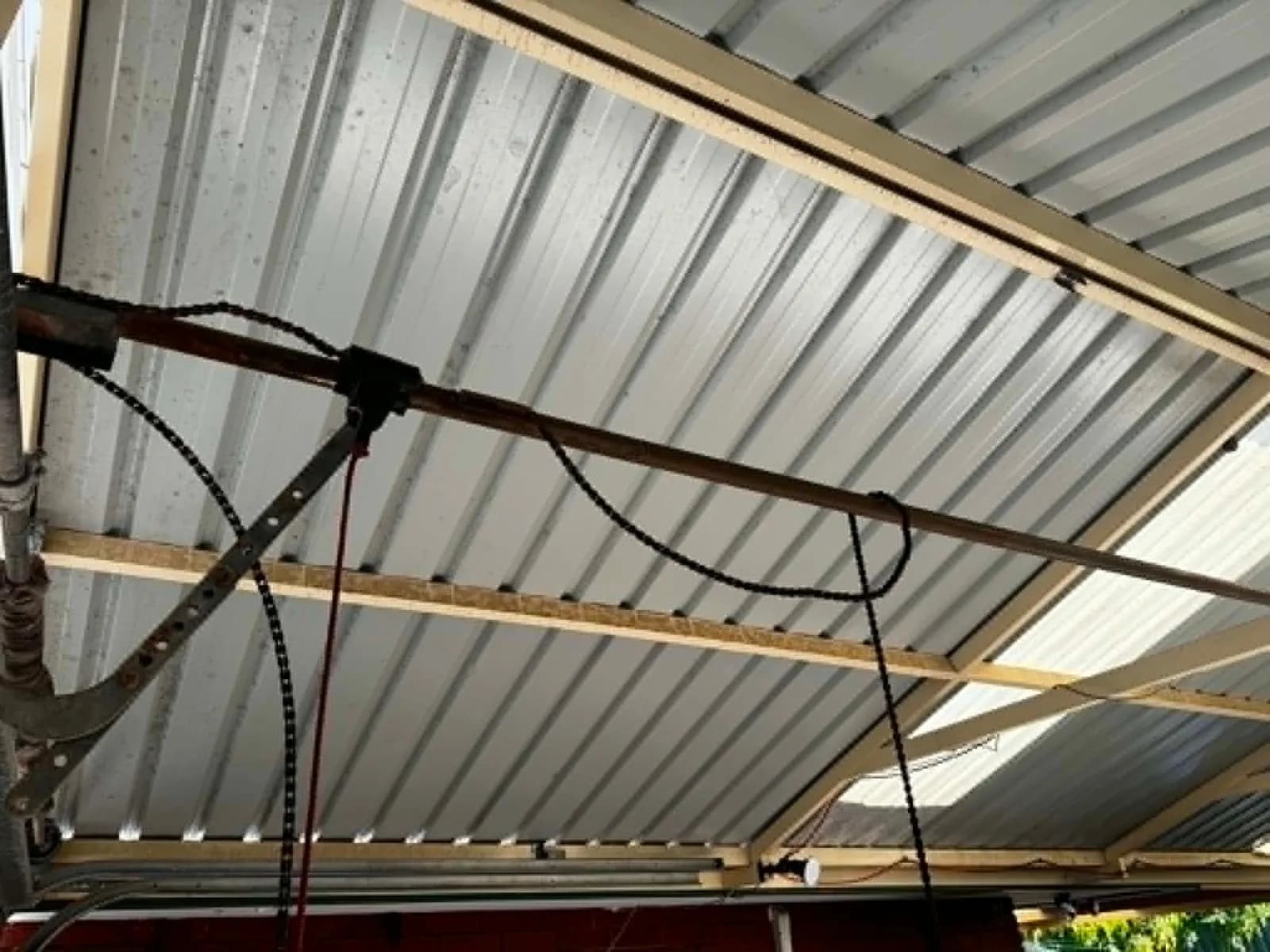

The snapped drive chain hanging from the rail

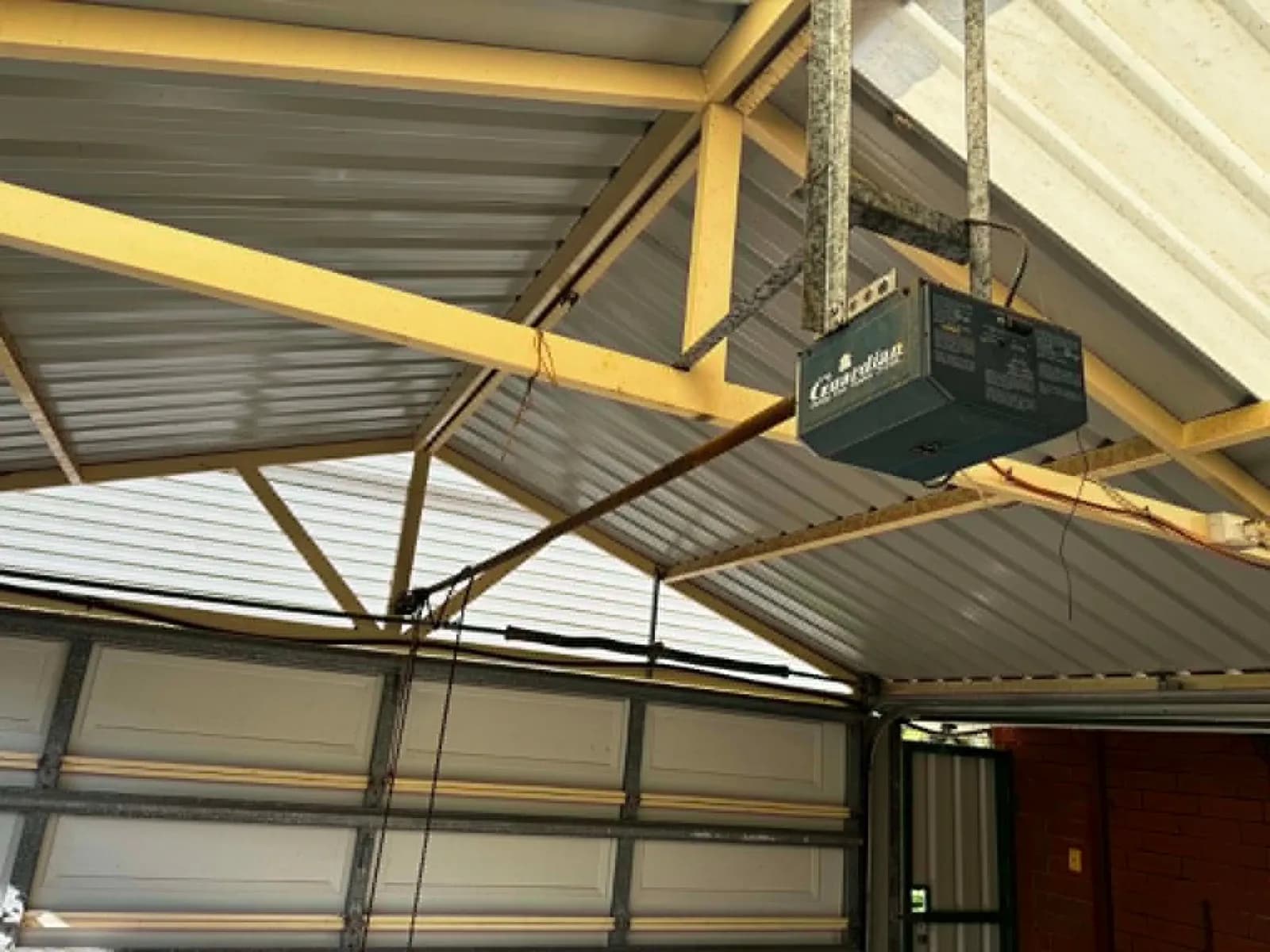

The old Guardian chain-drive opener

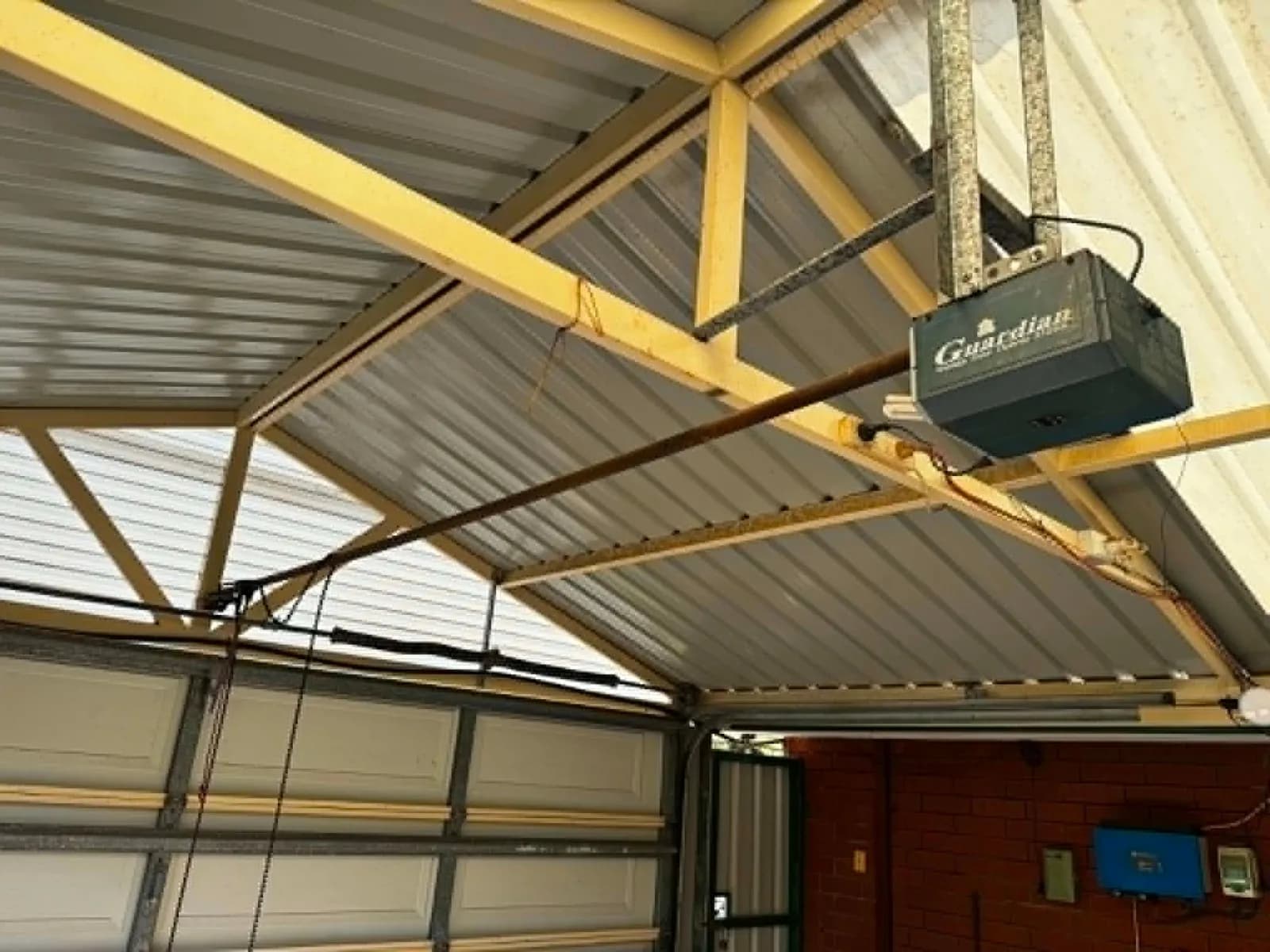

Chain slack at the opener head

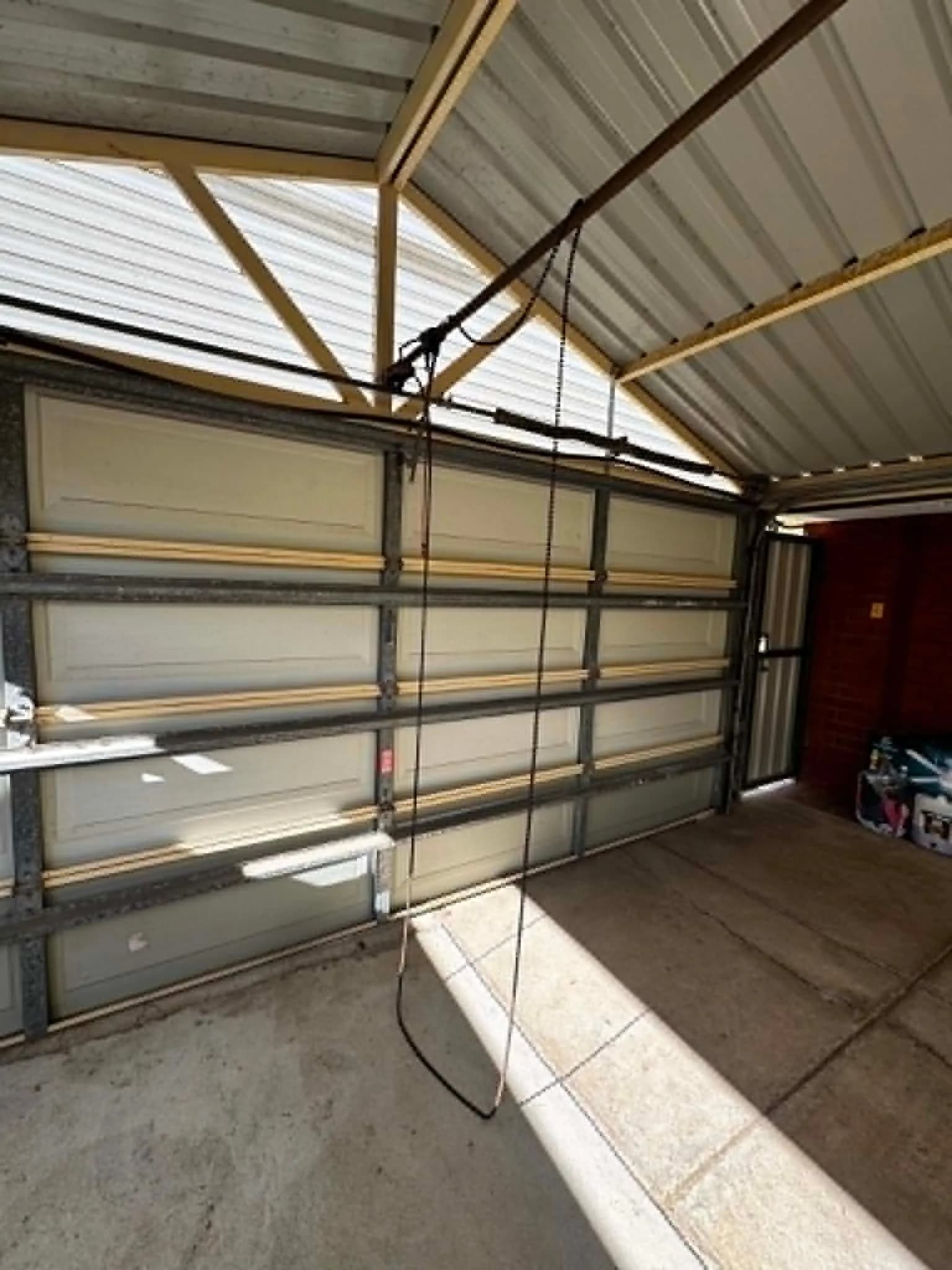

The stranded sectional door beneath the broken opener
Parts & Work Completed
- New sectional garage door opener & rail
- Door arm & brackets
- Remote programming
- Limit, force & safety-reversal set-up
Frequently Asked Questions
On a modern opener, yes — chains and belts are service parts. On a decades-old unit like this Guardian, the chain, sprocket and trolley are all worn together and matching parts are usually unobtainable, so a new opener is the honest recommendation. We'll tell you which applies before quoting.
